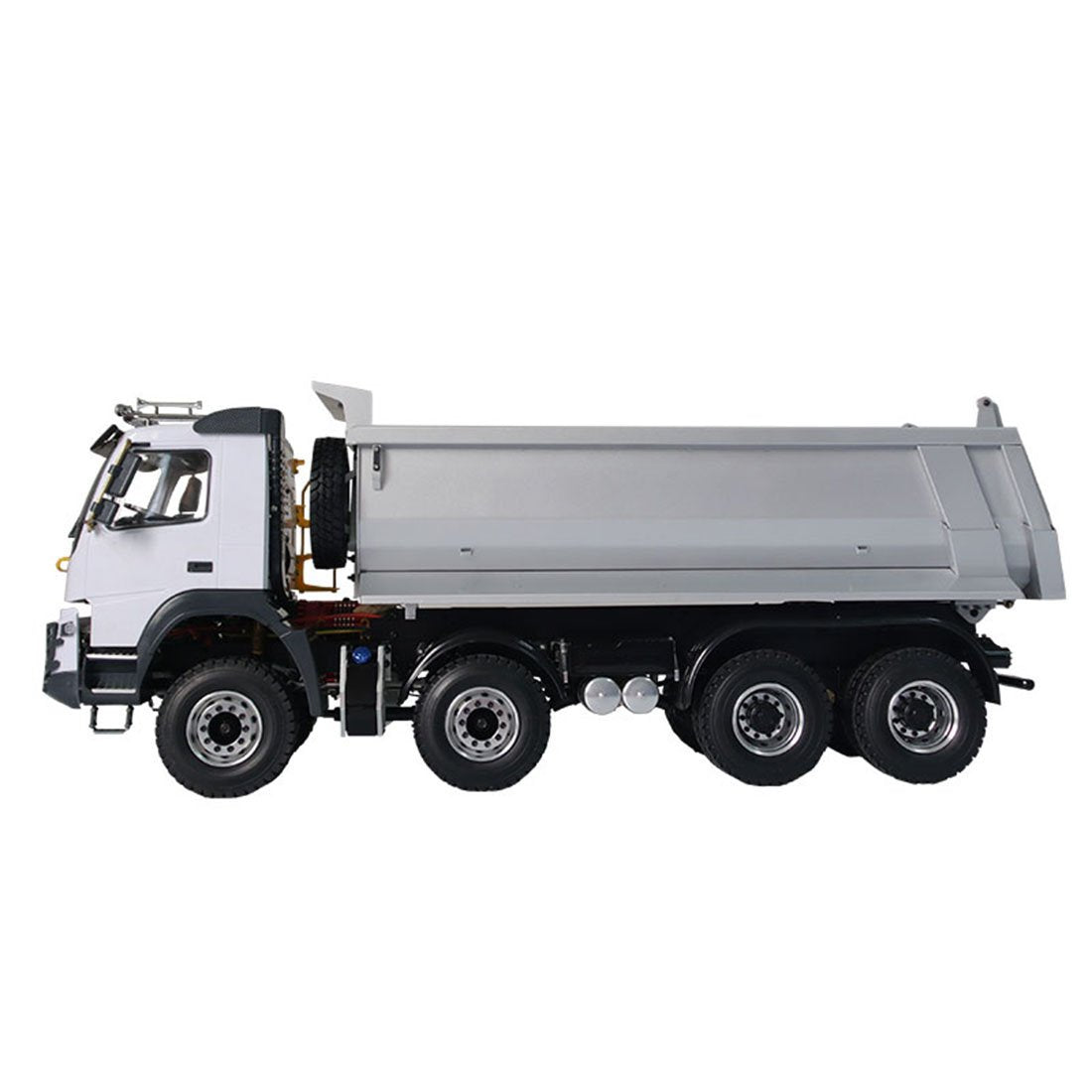

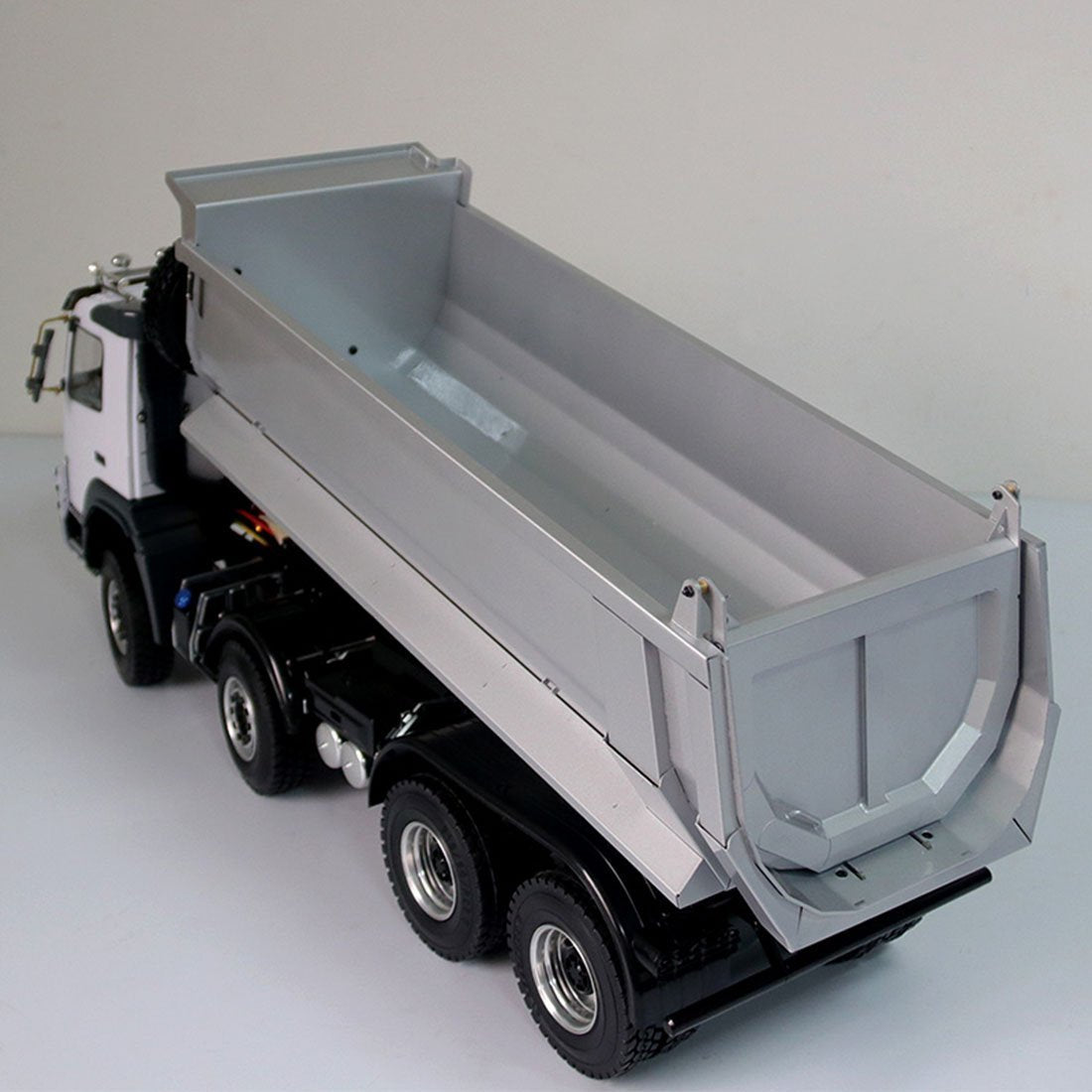

JDM-65 Volvo FMX 8x8 Metal Remote Control Dump Truck 1/14 Scale

• Model: Volvo FMX 8x8 Dump Truck
• Scale 1:14
• Material: Metal chassis and hopper, ABS hard plastic cabin
• Includes 11.1V rechargeable battery, 3S and higher lithium batteries (not included)
• The remote control requires a 9.6V battery (not included) (Not included)
• Product weight: 10.3 Kg
• Hopper load capacity: 15 kg theoretical
• Motor: 35T 540 brushed motor
• ESC: High voltage ESC 320A 7.2-16.8V
• Servo: 17kg servo
• It has a differential mechanism on the axles
• Equipment dimensions: Length 68 cm x Width 21 cm x Height 29 cm
• Box dimensions: Length 77 cm x Width 31 cm x Height 36 cm
• Brand: Volvo
• 06 Months Manufacturing Warranty
• Manufacturer: JDM

Characteristics:

Hydraulic fluid: 32# or 46# hydraulic fluid

Gearbox: The planetary gearbox features a compact structure. The simulated ziplock-type shifter delivers high torque. It allows for on-the-fly gear shifting.

Reduction ratio: First gear 1:64 / second gear 1:6

High magnetic torque brush, 35T540 motor, replaceable carbon brush.

320A, 7.2-16.8V High Voltage ESC.

The vehicle can traverse a steep 45-degree slope with a load of 15 kg.

Front Suspension: The wishbone-type balance suspension with a traction bar increases the oscillation amplitude of the front axle and improves the truck's passing performance.

Rear suspension: Lightweight, few-piece parabolic steel plate. Increased load capacity thanks to its high elasticity, allowing for even support of each tire.

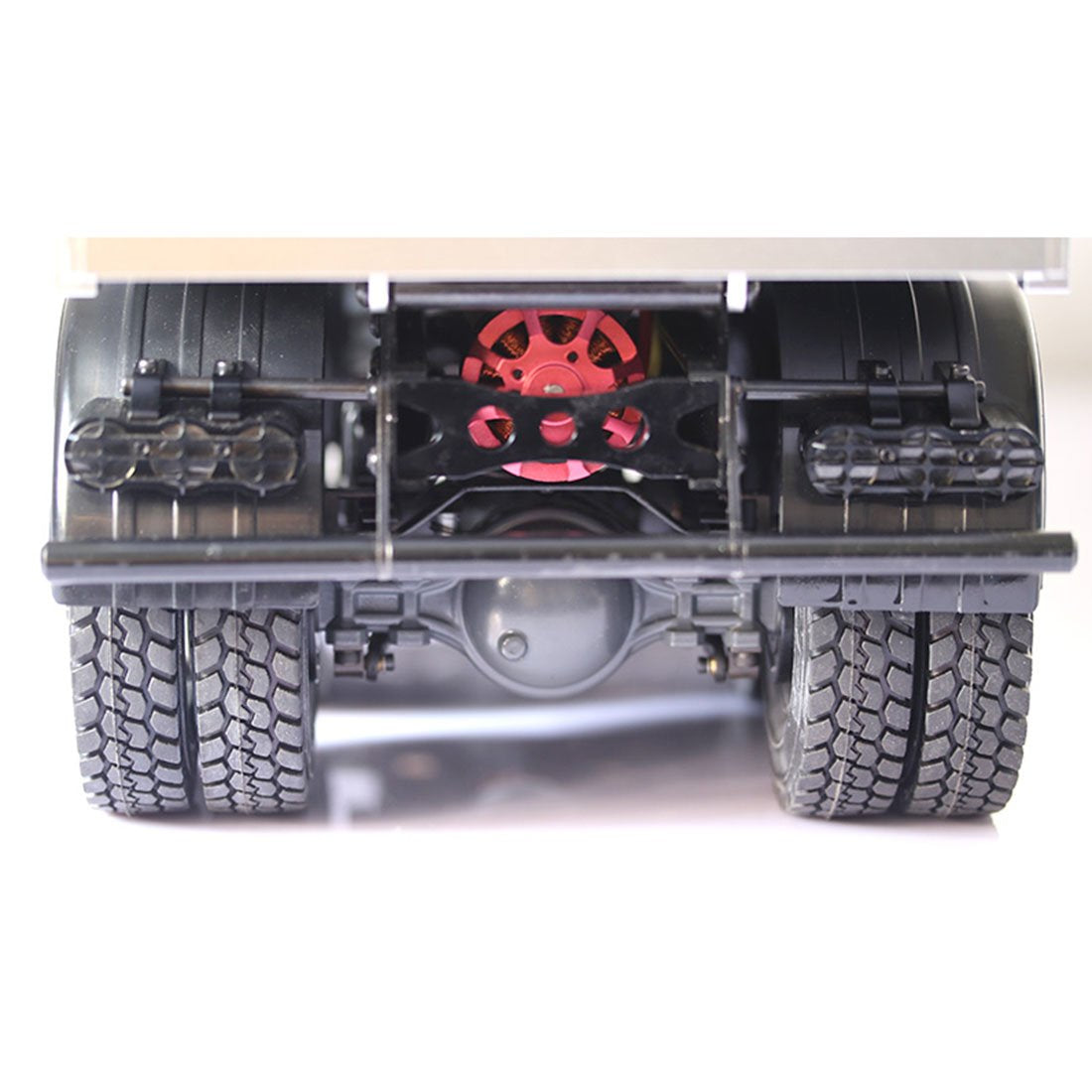

Drive axle: Simulated single-stage deceleration axle design made of zinc alloy. Allows for differential lock control to improve dump truck drivability. The hexagonal connector adopts a hub structure for more precise installation.

Steering: Double-rod steering system. The steering mechanism is mounted between the main beams. Transmission capacity of 17 kg, high steering torque. Thanks to the coordination of each rod, different steering angles can be formed to reduce resistance.

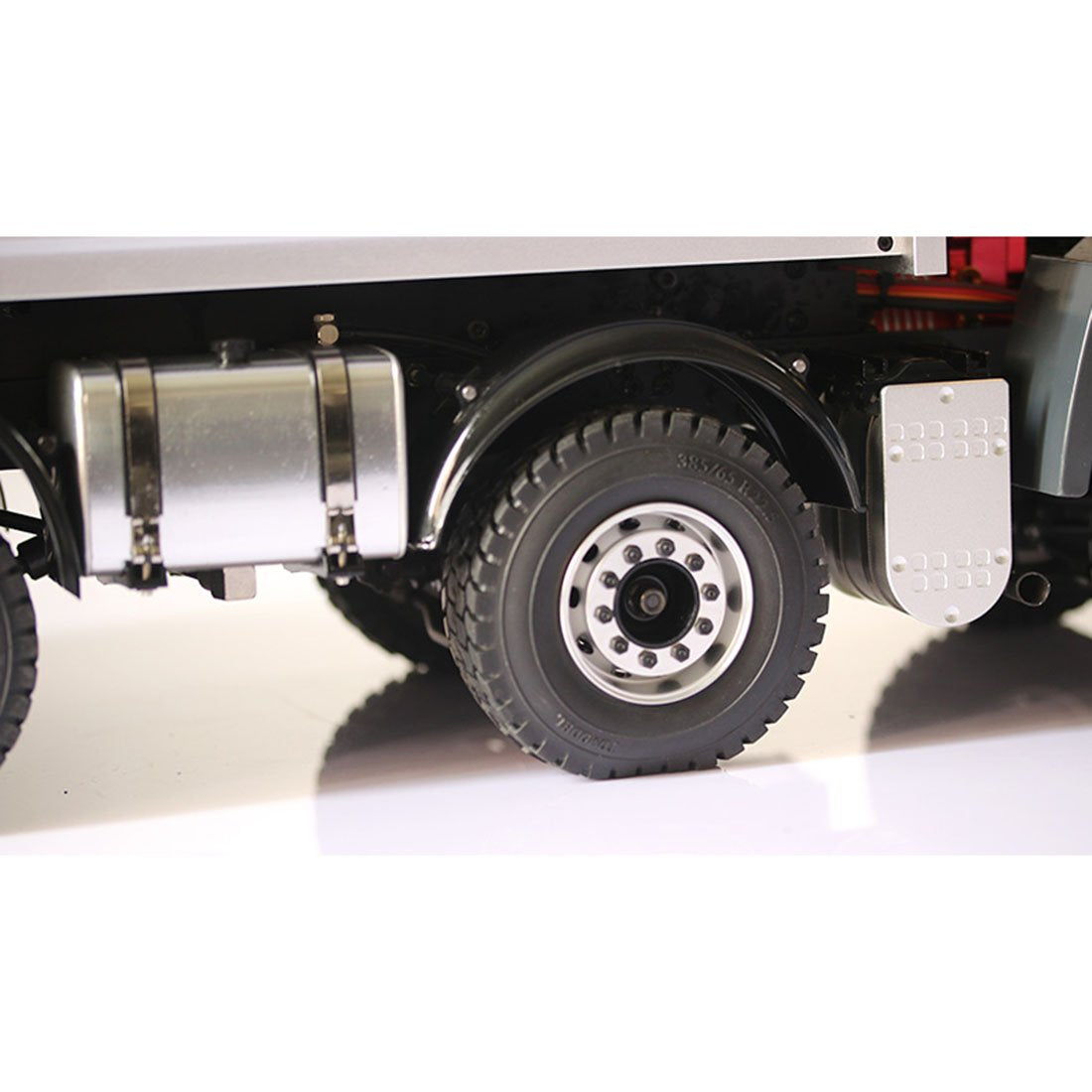

Wheel hub: Vacuum tire ring structure with 10 heat dissipating holes.

Tire: 315/80/R22.5, 86.5 mm diameter and 22 mm width. Features deep grooves for improved grip.

Driveshaft: Equipped with a V-shaped initial angle driveshaft with gradual opening. Splined structure and high torque.

Oil Cylinder: 5-stage multi-stage oil cylinder with a 37 mm bore, 115 mm stroke, and 5 MP pressure resistance. Connected to an oil pump, the theoretical thrust is 400 kg.

Oil pump: 2814 brushless motor, nominal pressure 3.5 to 5 MPa, flow rate 0.42 L/min. Small volume and high efficiency. 40 A brushless electric control.

Car buckle: Its button-down design makes battery replacement easy. Pulling the buckle opens the car shell automatically.

Oil tank: The exterior is anodized silver, and the interior is filled with hydraulic oil, which can make the car more beautiful.

Taillight: The taillight with explosion-proof net designed in the static model can be freely installed with 3-5mm LED lights.

Cart: Uses a car-simulated bucket for faster unloading and reduced material sticking.
